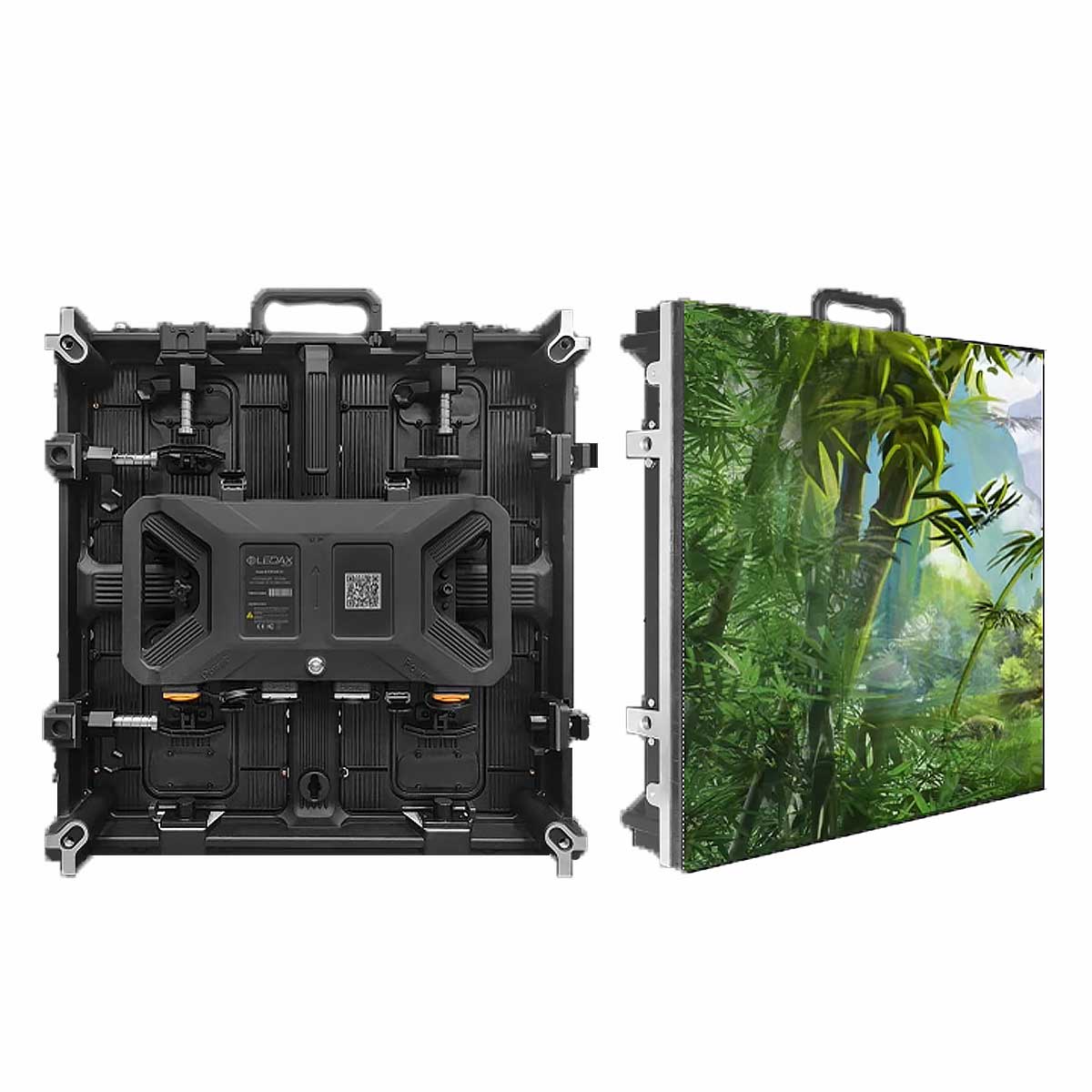

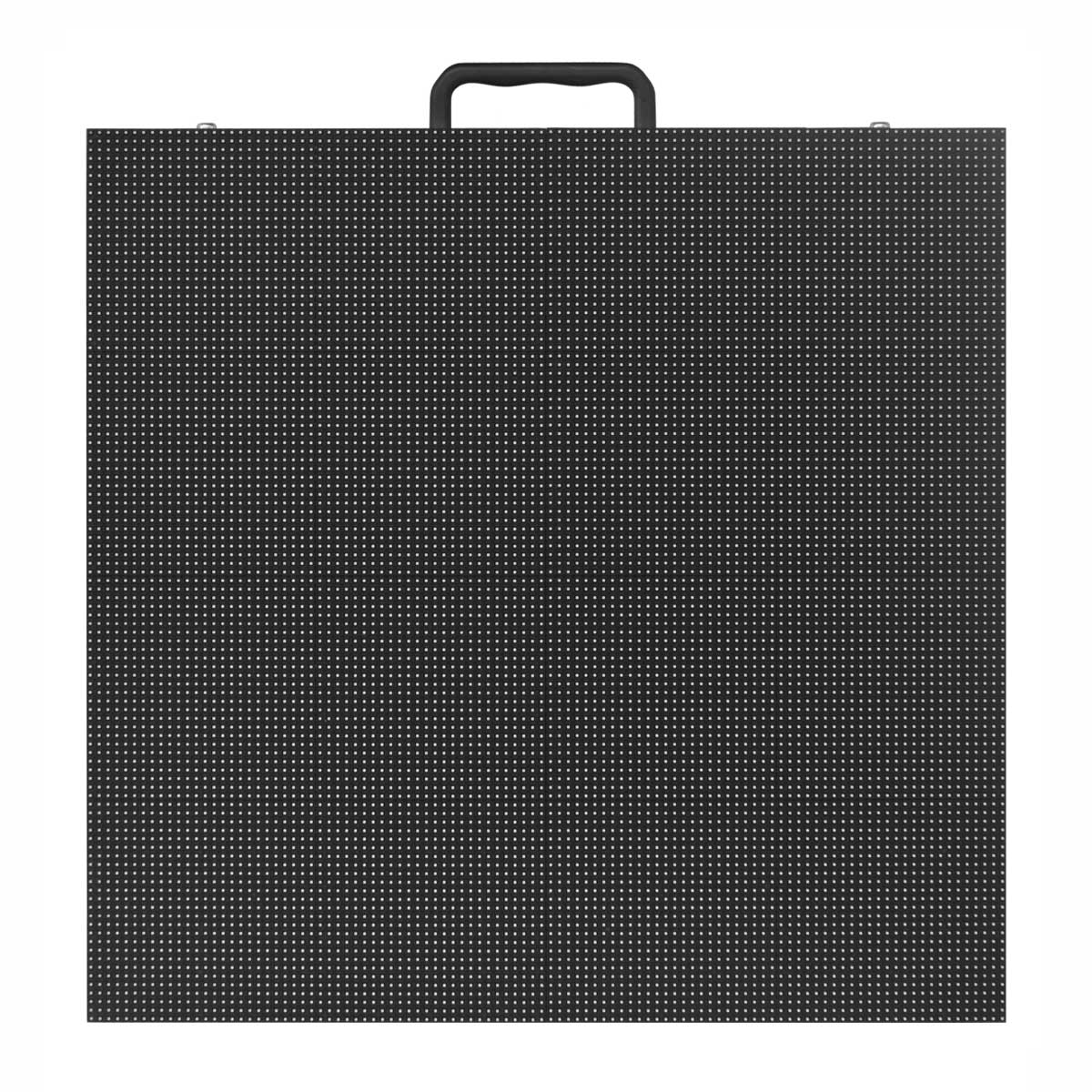

E-Pro line
Specification:
Pixel Pitch:
2.6 mm
LED Source:
SMD 1515
Module type:
Indoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
192x192px
Panel Weight:
16lb
Drive IC / Scan:
MBI5264/8S
Refresh Rate:
7680Hz
Brightness:
1200~1500Nits
Color Depth:
18bit
Receiving Card:
A10S-Pro
Input Voltage:
AC100-240V 50/60Hz
Max Power Consumption:
≤120W
Average Power Consumption:
≤60W
Working Temperature:
-40~140F
Working Humidity:
10-95%
Protection Rate:
IP44
Pixel Pitch:
2.6 mm
LED Source:
SMD 1515
Module type:
Indoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
192x192px
Panel Weight:
16lb
Drive IC / Scan:
ICN2065S/16S
Refresh Rate:
7680Hz
Brightness:
1200~1500Nits
Color Depth:
18bit
Receiving Card:
A10S-Pro
Scanning Method:
1/16 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤120W
Average Power Consumption:
≤60W
Protection Rate:
IP31
Maintenance Mode:
Front / Back
Pixel Pitch:
1.95 mm
LED Source:
SMD 1515
Module type:
Indoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
256x256px
Panel Weight:
16lb
Drive IC / Scan:
ICN1063/32S
Refresh Rate:
3840Hz
Brightness:
700~800Nits
Color Depth:
10-18bit (optional)
Receiving Card:
A8S plus
Scanning Method:
1/16 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤120W
Average Power Consumption:
≤60W
Protection Rate:
IP31
Maintenance Mode:
Front / Back
Pixel Pitch:
2.6 mm
LED Source:
SMD 1515
Module type:
Indoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
192x192px
Panel Weight:
16lb
Drive IC / Scan:
ICN2153/32S
Refresh Rate:
2880HZ
Brightness:
700~800Nits
Color Depth:
10-18bit (optional)
Receiving Card:
A8S plus
Scanning Method:
1/16 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤120W
Average Power Consumption:
≤60W
Protection Rate:
IP31
Maintenance Mode:
Front / Back
Pixel Pitch:
3.1 mm
LED Source:
SMD 2020
Module type:
Indoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
160x160px
Panel Weight:
16lb
Drive IC / Scan:
ICN2153/27S
Refresh Rate:
3840Hz
Brightness:
700~900Nits
Color Depth:
10-18bit (optional)
Receiving Card:
A8S plus
Scanning Method:
1/16 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤120W
Average Power Consumption:
≤60W
Protection Rate:
IP31
Maintenance Mode:
Front / Back
Pixel Pitch:
3.9 mm
LED Source:
SMD 2020
Module type:
Indoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
128x128px
Panel Weight:
16lb
Drive IC / Scan:
ICN2153/16S
Refresh Rate:
3840Hz
Brightness:
800~1000Nits
Color Depth:
10-18bit (optional)
Receiving Card:
A8S plus
Scanning Method:
1/16 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤120W
Average Power Consumption:
≤60W
Protection Rate:
IP31
Maintenance Mode:
Front / Back
Pixel Pitch:
2.6 mm
LED Source:
SMD 1516 Black
Module type:
Outdoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
192x192px
Panel Weight:
16lb
Drive IC / Scan:
ICN2153/16S
Refresh Rate:
3840Hz
Brightness:
2800~3300Nits
Color Depth:
10-18bit (optional)
Receiving Card:
A8S plus
Scanning Method:
1/13 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤300W
Average Power Consumption:
≤100W
Protection Rate:
IP56 / IP56
Maintenance Mode:
Front / Back
Pixel Pitch:
3.1 mm
LED Source:
SMD 1516 Black
Module type:
Outdoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
160x160px
Panel Weight:
16lb
Drive IC / Scan:
ICN2153/20S
Refresh Rate:
3840Hz
Brightness:
2800~3300Nits
Color Depth:
10-18bit (optional)
Receiving Card:
A8S plus
Scanning Method:
1/13 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤300W
Average Power Consumption:
≤100W
Protection Rate:
IP56 / IP56
Maintenance Mode:
Front / Back
Pixel Pitch:
3.9 mm
LED Source:
SMD 1820
Module type:
Outdoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
128x128px
Panel Weight:
16lb
Drive IC / Scan:
ICN2153/16S
Refresh Rate:
3840Hz
Brightness:
5000~5500Nits
Color Depth:
10-18bit (optional)
Receiving Card:
A8S plus
Scanning Method:
1/13 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤300W
Average Power Consumption:
≤100W
Protection Rate:
IP56 / IP56
Maintenance Mode:
Front / Back
Pixel Pitch:
4.8 mm
LED Source:
SMD 1820
Module type:
Outdoor
Panel Size:
500x500mm / 19.7x19.7in
Panel Resolution:
104x104px
Panel Weight:
16lb
Drive IC / Scan:
ICN2153/13S
Refresh Rate:
3840Hz
Brightness:
4700~5000Nits
Color Depth:
10-18bit (optional)
Receiving Card:
A8S plus
Scanning Method:
1/13 Scanning Constant Current
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
≤300W
Average Power Consumption:
≤100W
Protection Rate:
IP56 / IP56
Maintenance Mode:
Front / Back
