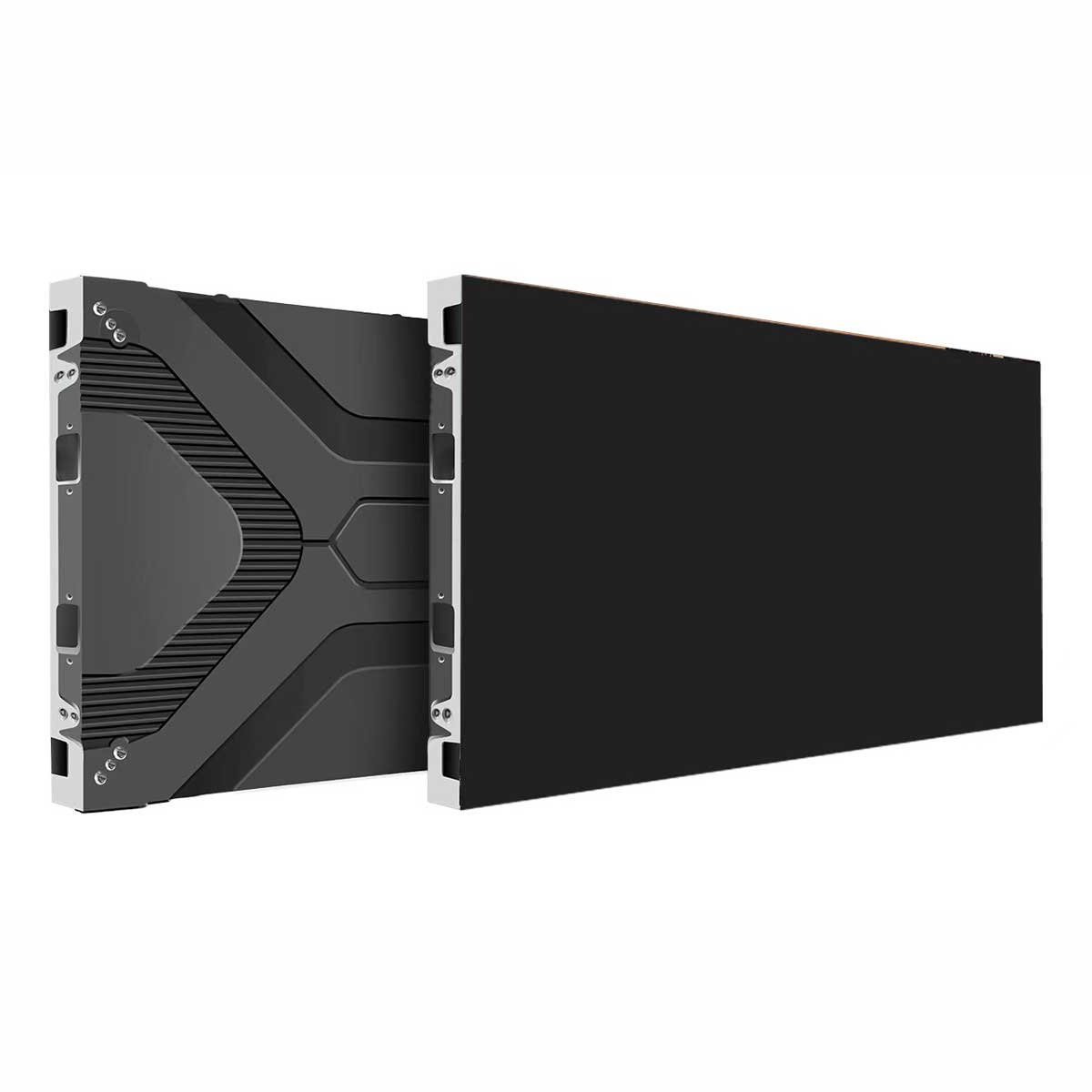

COB line
Specification:
Pixel Pitch:
0.935 mm
LED Source:
Flip Chip COB
Panel Size:
600x337.5x32mm / 23.62x13.28x1.25in
Panel Resolution:
640x362px
Panel Weight:
10lb
Drive IC:
ICN2065
Refresh Rate:
2880Hz
Brightness:
800Nits
Color Depth:
10-18bit (optional)
Receiving Card:
Novastar A7S-plus
Scanning Method:
1/60
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
600W
Average Power Consumption:
<200W
Protection Rate:
IP54
Maintenance Mode:
Front
Pixel Pitch:
1.25 mm
LED Source:
COB full color RGB
Panel Size:
600x337.5x32mm / 23.62x13.28x1.25in
Panel Resolution:
480x270px
Panel Weight:
10lb
Drive IC:
ICN2065
Refresh Rate:
3840Hz
Brightness:
600Nits
Color Depth:
10-18bit (optional)
Receiving Card:
Novastar A5S-plus
Scanning Method:
1/45
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
150W
Average Power Consumption:
<50W
Protection Rate:
IP54
Maintenance Mode:
Front
Pixel Pitch:
1.53 mm
LED Source:
COB full color RGB
Panel Size:
960x480mm / 37.8x18.9in
Panel Resolution:
627x315px
Panel Weight:
10lb
Drive IC:
ICN2065
Refresh Rate:
3840Hz
Brightness:
600Nits
Color Depth:
10-18bit (optional)
Receiving Card:
Novastar A5S-plus
Scanning Method:
1/52
Input Voltage:
AC110-240V 50/60Hz
Max Power Consumption:
250W
Average Power Consumption:
<70W
Protection Rate:
IP54
Maintenance Mode:
Front
